KUNKIN KL7400

KL74XX series

Low visibility automobile 4.3 inch TFT color screen, Chinese and English menu interface.

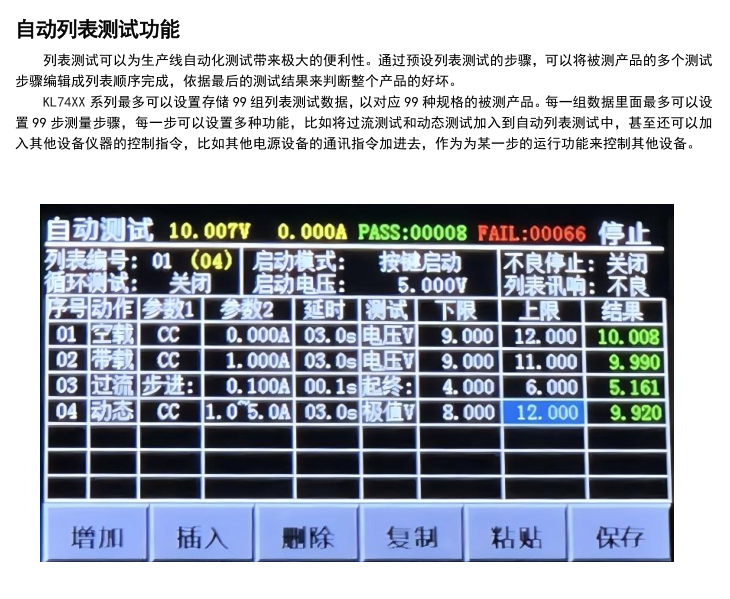

● Automatic list test of enhanced functions: short circuit, dynamic and overcurrent tests can be added.

● Various working modes: CC/CV/CW/CR/LED.

● Basic functions, battery capacity, battery internal resistance, dynamic test, time test, automatic list and overcurrent test.

● The battery capacity test can display the voltage-current curve.

● Remote measurement function;

● Voltage and current ripple peak-to-peak test function;

● Equipped with various communication interfaces: RS232/RS485/LAN (optional).

● Charger test (automatic trigger function is optional)

● It has PASS/FALL signal output and TRIG trigger signal input.

● It can be used as a host to issue instructions to control other test equipment.

●PWM temperature control intelligent fan control;

● The harmony tone can be set as an operation or alarm prompt;

● Comprehensive protection function: over-voltage/over-current/over-power/overheating/polarity reversal/protection over-current protection point/protection time test function.

● Power-off memory keeping function

● Software monitoring can be carried out by computer, and MODBUS and SCPI instructions are supported.

● The standard model voltage is 150 V/300 V/500 V/600 V/800 V/1000 V/1200, and the current is 50a/60a/100a/120a/240a/300a/400a/500a/600a/800a/1000a.
